Drag Link Assembly

Part #: DP-176480

Brand: Duraparts

$92.56

Application: Peterbilt
Type: Non-Replaceable Ends
Ends: Identical Ends

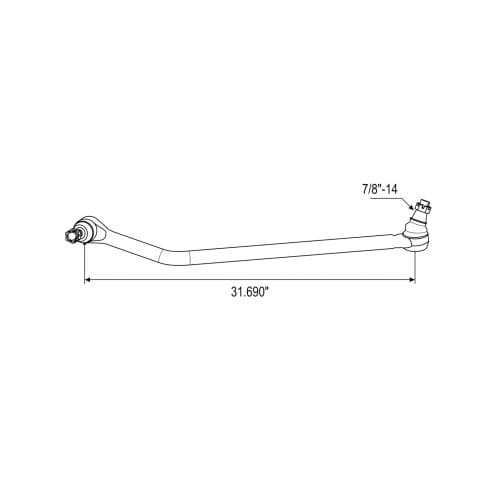

Length Center to Center: 31.690″
Shaft Diameter: 1.378″
Shaft Side Thread: 1 1/8″ – 12 (RH)
Taper Minor Diameter: 1.080″
Taper Major Diameter: 1.250″
Taper Length: 1.360″
Taper Pin Thread: 7/8”-14

‘

Specifications

Cross-Reference Part Numbers

10-02499, PTR 10-02499, 93PB06874, VTC-76481, L24VU8001D11, DS1180, S 10-02499, FLD1180, E6819, R250068, R250068, E-6819, S-17648, 10-02499, 10-02260, 10-02132, 10-02499, 10-02260, 1002132, 1002499, 1002499, 1002260, 1002132, 463.DS1180, 2724182, DS1180, 346-371, DS1180, L24VU7051D11, L24VU7051C11L, L24VU7051C11K, L24VU7051C11, L24VU7051B12, L24VU7051B11, DS1180, L24VU8001D11, L24VU8001C11L, L24VU8001C11K, L24VU8001C11, L24VU7051B11
