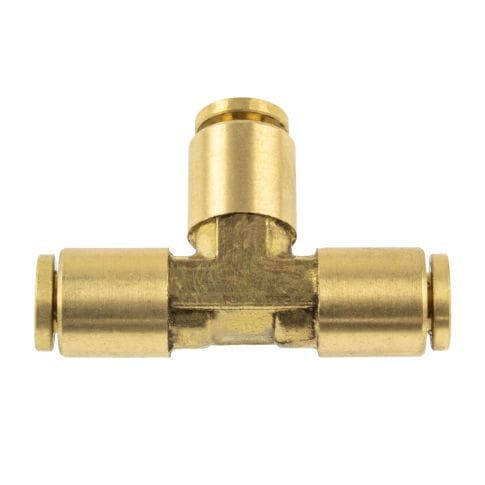

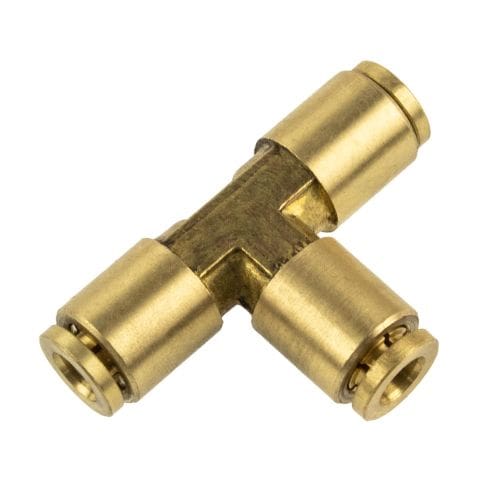

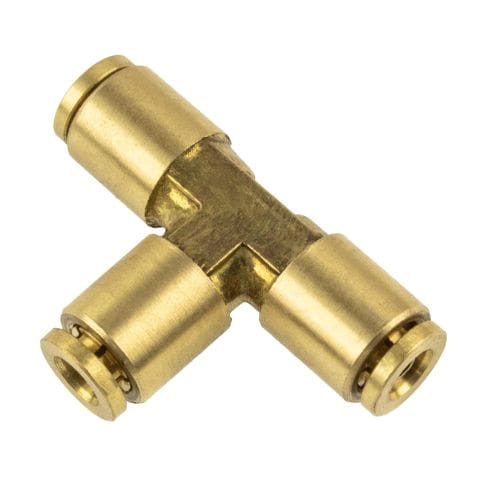

Union Tee Brass PTC Fitting

Join Our Team

Medium & Heavy Duty

(706) 722-3997

Light Duty

(706) 733-5031

Part #: DP-244700

Brand: Duraparts

$5.98

Works w/ SAE J844 Nylon Tubing
Meets DOT FMVSS71.106 & SAE J1131, J2494 Standards
-40º to 200º Temperature Range
Saves 75% Assembly Time Over Standard Compression Fittings
Full Flow Design
Positive Release Bushing for Ease of Insertion & Removal of Tubing
Thread Sealant Applied to All Male Pipe Threads to Reduce Installation Time
Maximum Operating Pressure 150 PSI

Specifications

Dimensions

Tube OD: 1/4"

Outside Diameter

1/4"

Cross-Reference Part Numbers

1864-4, 1864X4, 1864X4, 1864-4, B605-4-4-4, 1064.04, TAC-6404, QX-TBDOT-1/4, 1864X4, B7278A, PC1464-4, B605-1, S S-24470, 17920, 177.13B644, S-24470, S264PMT-4
