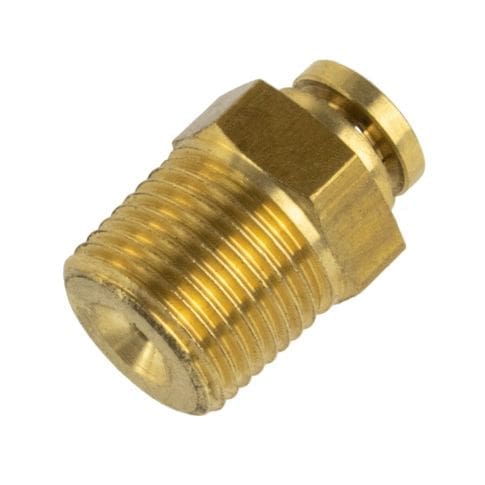

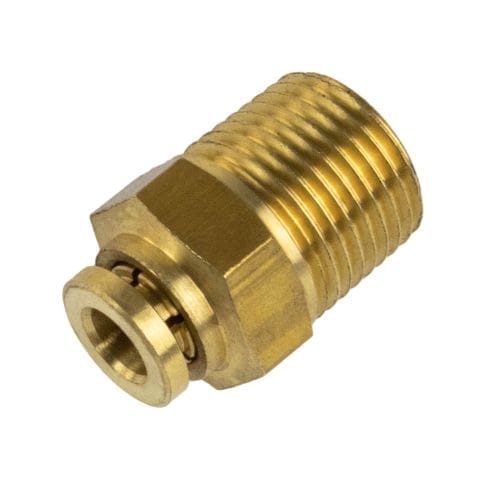

Straight Male Brass PTC Fitting

About Us

Questions? Call Us

(762) 273-4144

Part #: DP-244860

Brand: Duraparts

$2.67

Works w/ SAE J844 Nylon Tubing
Meets DOT FMVSS71.106 & SAE J1131, J2494 Standards
-40º to 200º Temperature Range
Saves 75% Assembly Time Over Standard Compression Fittings
Full Flow Design
Positive Release Bushing for Ease of Insertion & Removal of Tubing
Thread Sealant Applied to All Male Pipe Threads to Reduce Installation Time
Maximum Operating Pressure 150 PSI

Specifications

Outside Diameter

1/4"

Thread Size

3/8" NPT

Cross-Reference Part Numbers

1868-4-6, 1868X4X6, 1868-4-6, B604-4-6, B604-5, 1068.0406, QX-IMDOT-1/4*3/8, PC1468-4-6, 1868X4X6, PC1468-4B, B7281E, S S-24486, 17942, 177.13B684C, S-24486, S68PMT-4-6
