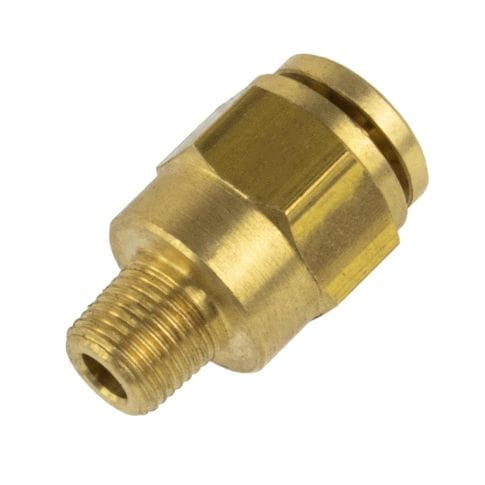

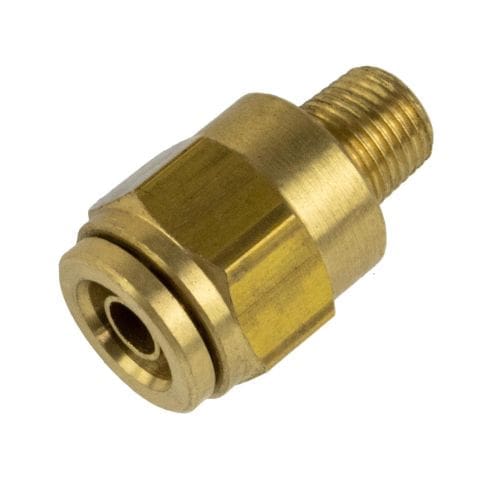

Straight Male Brass PTC Fitting

Part #: DP-244870
Brand: Duraparts

$4.37

$4.37

Works w/ SAE J844 Nylon Tubing
Meets DOT FMVSS71.106 & SAE J1131, J2494 Standards
-40º to 200º Temperature Range
Saves 75% Assembly Time Over Standard Compression Fittings
Full Flow Design
Positive Release Bushing for Ease of Insertion & Removal of Tubing
Thread Sealant Applied to All Male Pipe Threads to Reduce Installation Time
Maximum Operating Pressure 150 PSI

Specifications

Outside Diameter

3/8"

Thread Size

1/8" NPT

Cross-Reference Part Numbers

1868X6X2, 1868X6X4, 1868-6-2, B604-6-2, B604-6, 1068.0602, TAC-680602NPT, QX-IMDOT-3/8*1/8, PC1468-6-2, 1868X6X4, B7281F, S S-24487, 17943, 177.13B686A, S-24487, S68PMT-6-2
