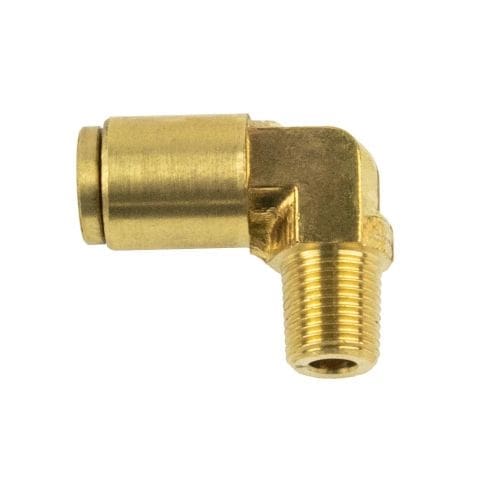

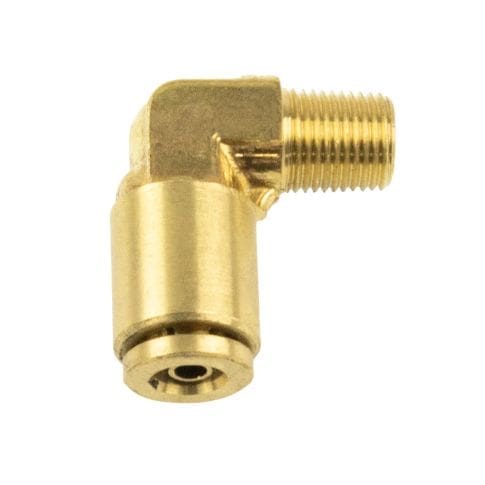

90 Degree Male Elbow Brass PTC Fitting

Join Our Team

Medium & Heavy Duty

(706) 722-3997

Light Duty

(706) 733-5031

Part #: DP-245180

Brand: Duraparts

$3.65

Works w/ SAE J844 Nylon Tubing
Meets DOT FMVSS71.106 & SAE J1131, J2494 Standards
-40º to 200º Temperature Range
Saves 75% Assembly Time Over Standard Compression Fittings
Full Flow Design
Positive Release Bushing for Ease of Insertion & Removal of Tubing
Thread Sealant Applied to All Male Pipe Threads to Reduce Installation Time
Maximum Operating Pressure 150 PSI

Specifications

Outside Diameter

1/4"

Thread Size

1/8" NPT

Cross-Reference Part Numbers

1869X4, 1869X4, 1469-4-2, 1869-4-2, B607-4-2, 1069.0402, QX-LMDOT-1/4*1/8, PC1469-4-2, 1869X4, B7276B, PC1469-4A, S S-24518, 177.13B154A, S-24518, 169PMTNS42, S269PMTNS-4-2
