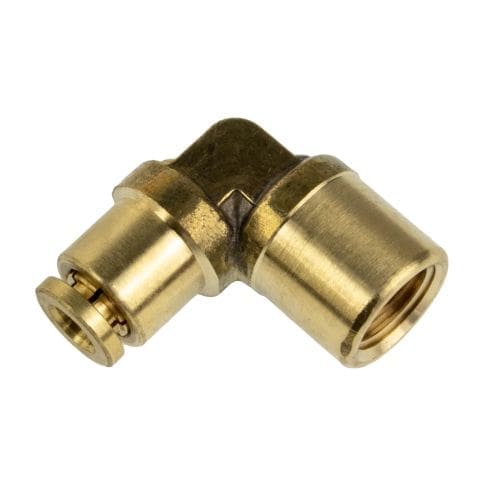

90 Degree Female Elbow Brass PTC Fitting

About Us

Questions? Call Us

(762) 273-4144

Part #: DP-245280

Brand: Duraparts

$3.25

Works w/ SAE J844 Nylon Tubing
Meets DOT FMVSS71.106 & SAE J1131, J2494 Standards
-40º to 200º Temperature Range
Saves 75% Assembly Time Over Standard Compression Fittings
Full Flow Design
Positive Release Bushing for Ease of Insertion & Removal of Tubing
Thread Sealant Applied to All Male Pipe Threads to Reduce Installation Time
Maximum Operating Pressure 150 PSI

Specifications

Outside Diameter

1/4"

Thread Size

1/4" NPTF

Cross-Reference Part Numbers

1870-4-4, 1870X4X4, 1870-4-4, B609-4-4, 1070.0404, QX-LFDOT-1/4*1/4, PC1470-4-4, 1870X4X4, B7283B, S S-24528, S-24528
