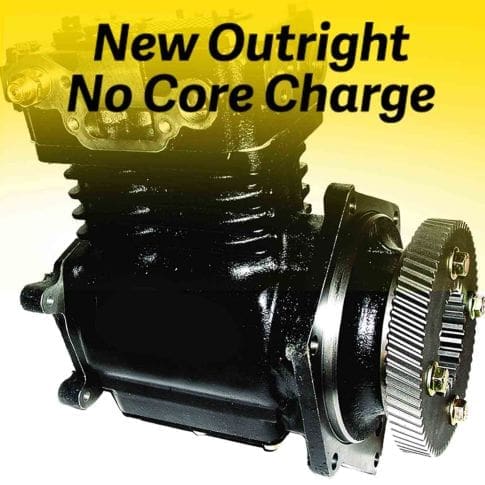

Name: Air Compressor NS750
Brand: Duraparts
SKU: DP-133940
Price: 937.00 USD
Availability: InStock

Air Compressor NS750

Part #: DP-133940

Brand: Duraparts

$937.00

Replacement for Bendix® TF750, Upgraded Version of TF550
Components are 100% Interchangeable W/ OEM
New Outright
No Core Charges
Air Inlet/Outlet: Top/Left
Cooling: Water/Air
Includes 69 Tooth Drive Gear
Includes Safety Valve
2 Cylinders
Displacement at 1250 RPM: 16.5 CFM
Max RPM: 2400
Approx. HP Req. at 1250 RPM at 120 PSIG: 3.2 HP
Max Inlet Air Temp: 250ºF
Thru-Drive Capacity: 100Ft/Lb

Specifications

Cross-Reference Part Numbers

5004188, 5001614, 065537, 065538, 109425, 109426, 109429, 109430, 5001614, 5001615, 5001616, 5001617, 5004082, 5004083, 5004187, 5004188, 5005934, 5008609, 5008610, 65537, 65538, 800394, 800395, R3516840, DDE R23522123, 109427, 170.5004188, BW 065538, BW 109426, BW 109430, BW 5001616, BW 5001617, BW 5004083, BW 5004188, BW 5005934, BW 800394, 23509780, 23516840, 23516841, 23522122, 23522123, R23509780, R23516840, R23516841, R23522122, R23522123, CB.110.000, VTC-33941, B13394GRP, 0123516841, S S-13394, NSS13394, SMRS13394, 5004187X, 5004188X, S-13394
